Walkthrough steps on resetting Steam thermostat on the Steel DUO PID (all versions since 2019)

Troubleshooting guide on how to reset the steam high-limit thermostat on an Ascaso Steel DUO PID made after 2019.

** Follow steps to remove the top panel linked here **

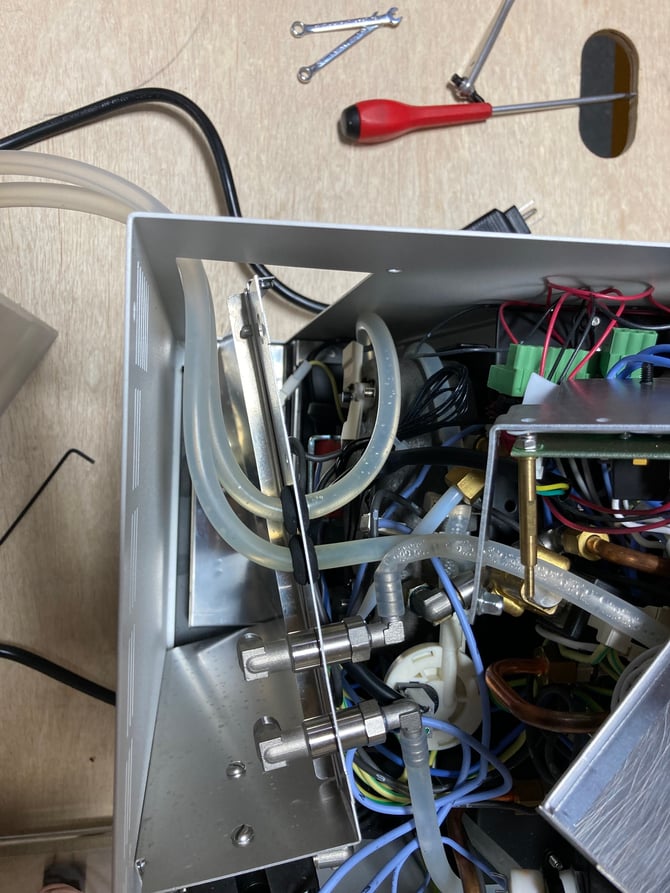

Step 1): Using 2.5mm metric allen key, unscrew the screws holding middle divider panel in place (photo attached) so this can scoot to the side.

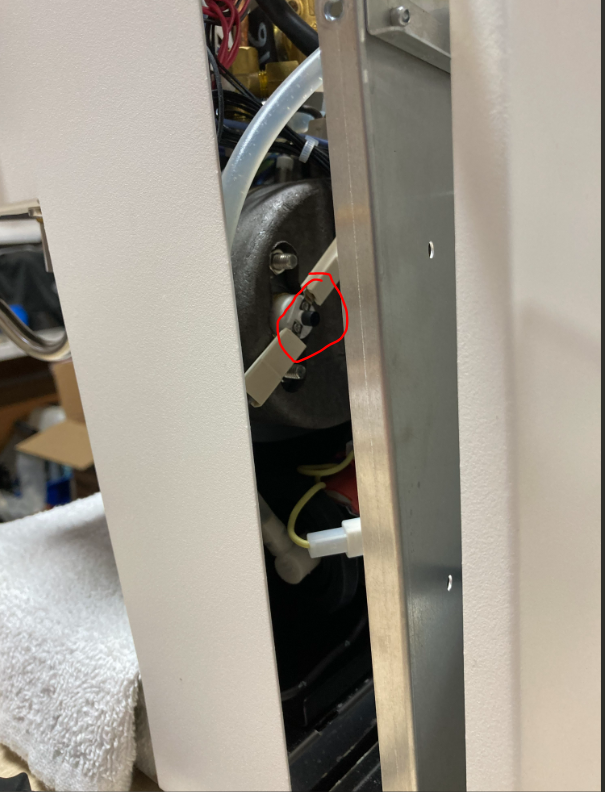

Step 2): Press the steam thermostat button. If this is slightly wobbly left/right but does not' allow you to press inward, this means it has not tripped and doesn't need to be reset. If it clicks when pushed inward, this means it tripped and has been reset (photo attached).
