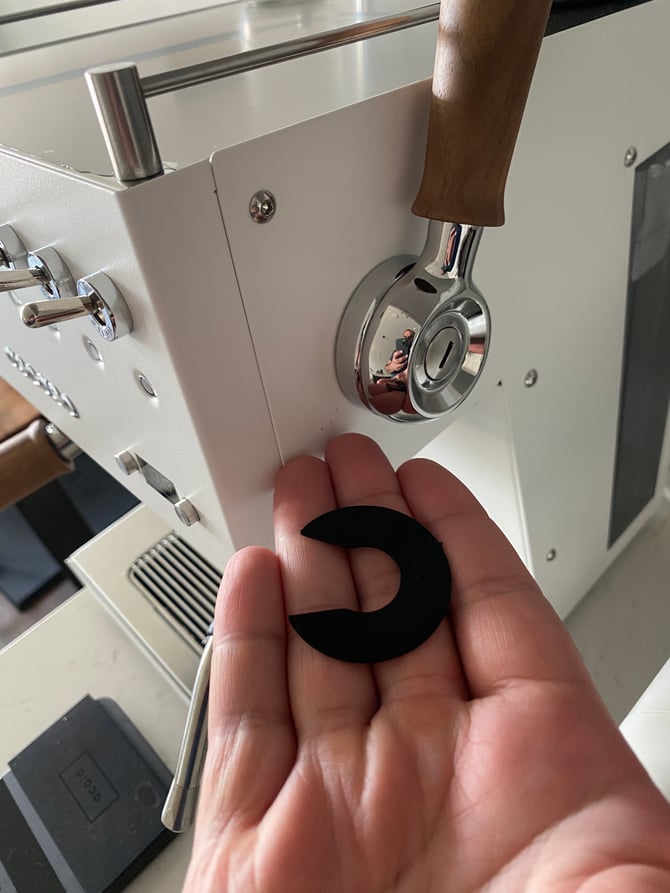

** Only some machines have this part installed, and if the lever movement is steady (not wobbly side-to-side) without the spacer in place, it may not need to be re-installed. **
-png.png?width=670&height=893&name=image%20(46)-png.png)
To properly re-install this spacer:
1) Power the machine off, unplug it from the power source, and allow it to cool completely.
2) Remove the steam lever handle

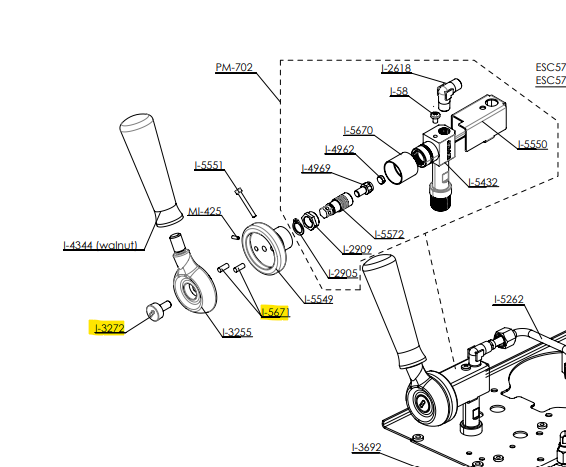

3) The silver inner bezel/assembly needs to have both grub screws removed (i5671)
- Apply some kind of glue to the back of the shim and apply to the fitting. allow to cure per the instructions on the glue that was used, and then re-install parts.
** We can help with photos showing this process later this week if needed or desired. **
If you have any difficulty with re-assembly, or the function of the steam wand is not corrected, please contact us at Info@AscasoUSA.com.
