Here are directions and some photos of how to access the steam pump to reposition and
correct the vibration noise.

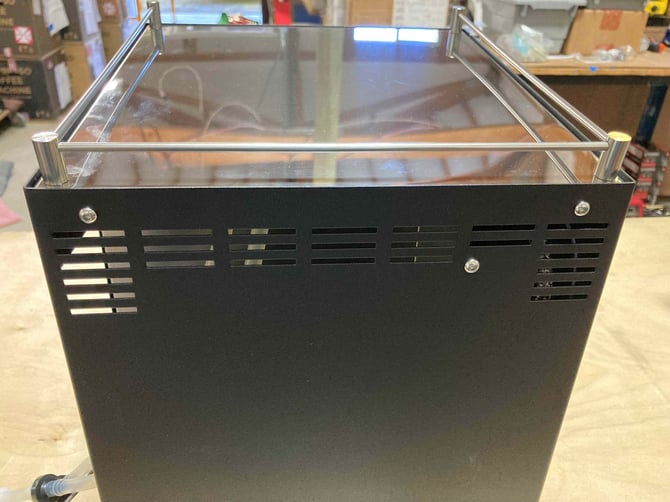

Step 1: remove the top panel screws (with 2.5mm metric allen key) (*guide for top panel removal is here for reference *)

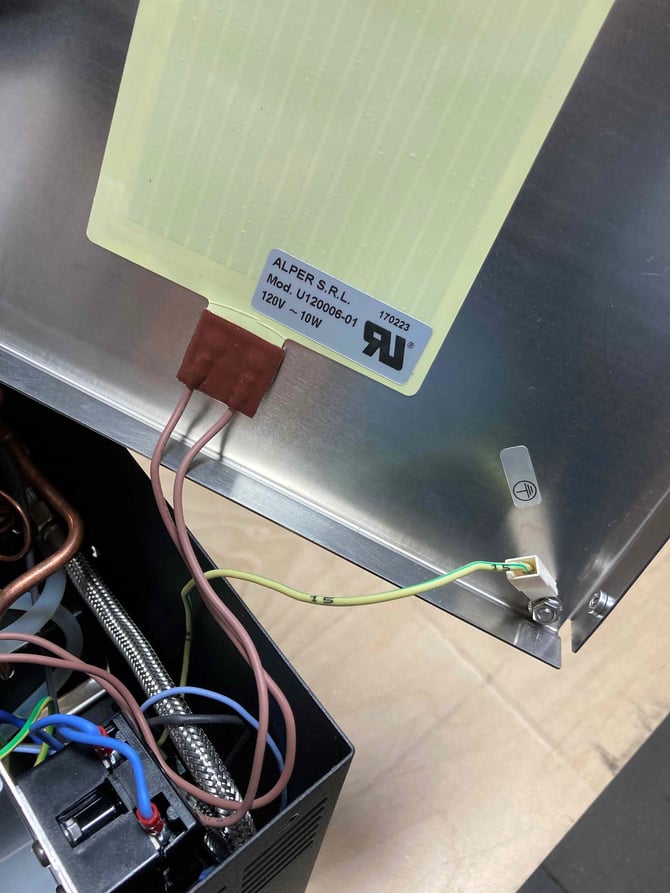

Step 2: - remove the ground wire from the top panel

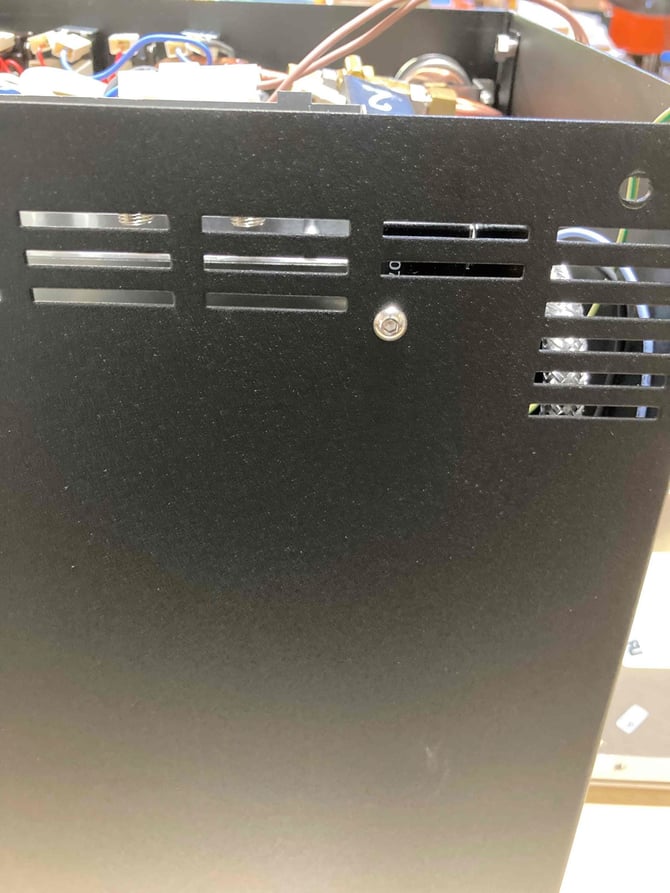

Step 3: - Then remove 3 screws from the back panel, side panel and inner panel
Step

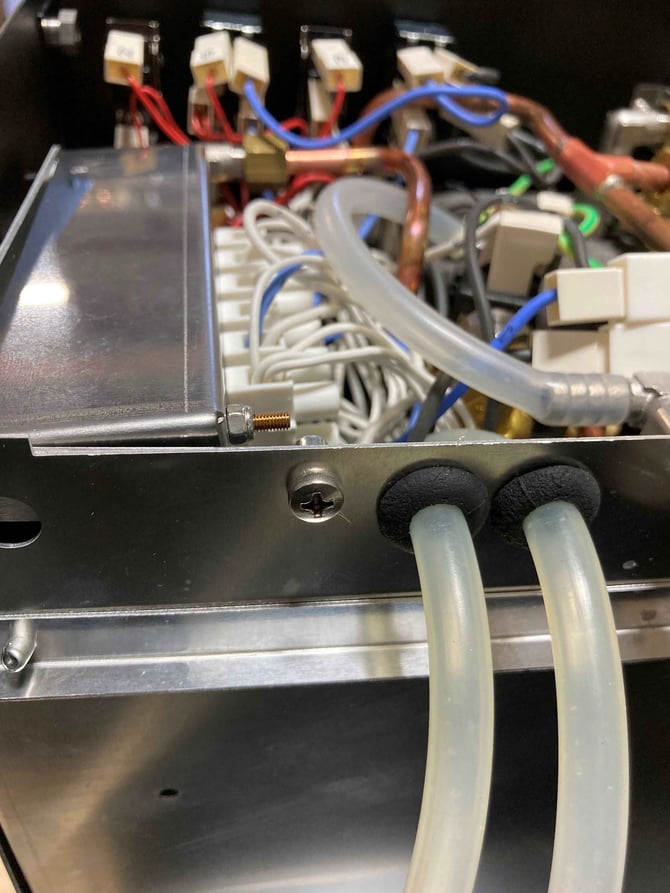

Step 4: - then remove the silicone exhaust tubes x2

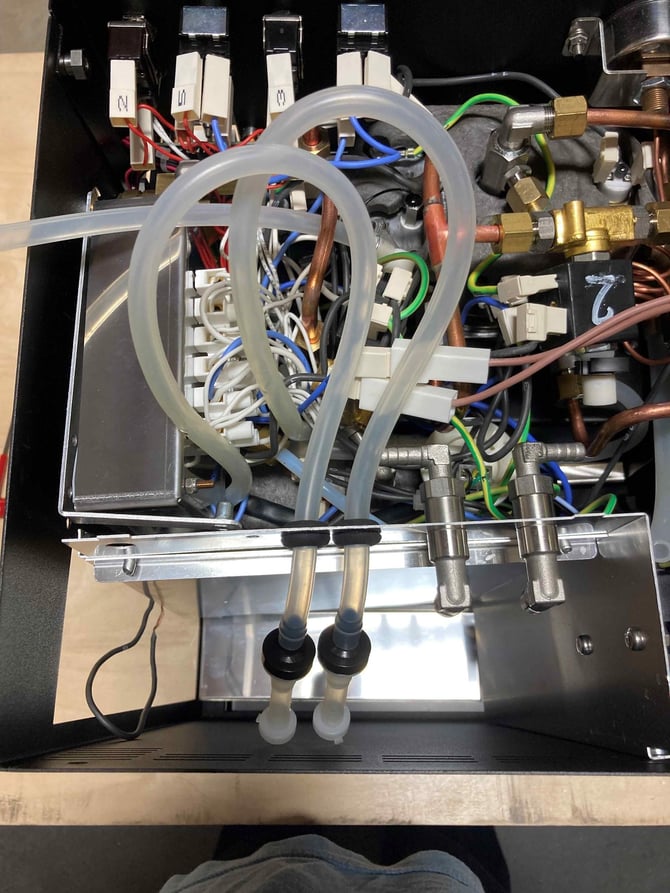

Step 5: - mark the water draw tubes and pull towards the front of the machine

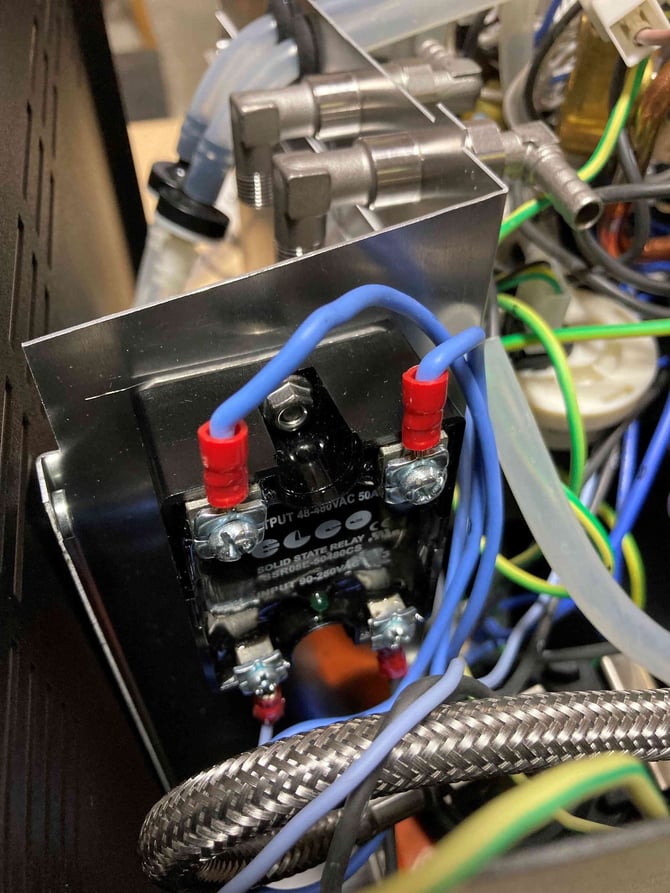

Step 6: - disconnect the upper-left wire from the SSR

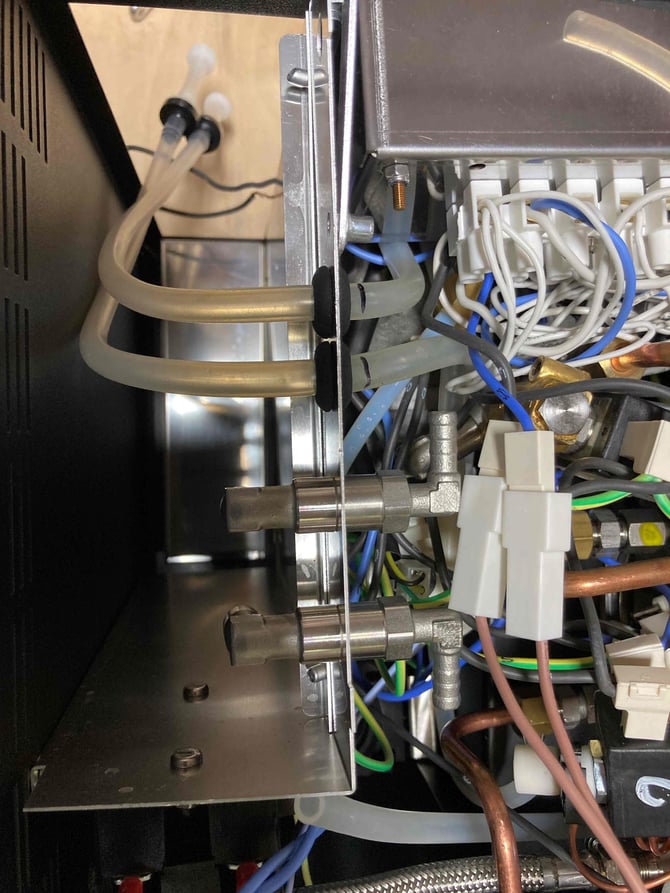

Step 7: - lift the panel out to access the steam pump and reposition in the rubber mounts
Final Steps: Carefully reassemble panels and tubing, following the guide in reverse.
** After following the guide and reassembling, if you are still having vibratory pump issues, please contact the Ascaso support team at Info@AscasoUSA.com for further assistance **
